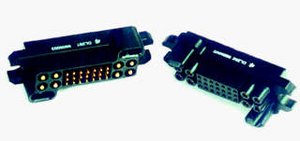

HIPO D-Series Electrical Connector DL29

Features

  • Current rating: up to 35A per contact #12
  • Guiding structure to avoid mismating and floating mounting for blind mating
  • Number of contacts: 29
  • Contact sizes: 21x #20; 4x #16; 4x #12 (D29P/S-20)
    Contact sizes: 21x #20; 8x #12 (D29P/S-21)
  • Contact length: standard, pre and post mate
  • Termination: Crimp, Solder, PCB
  • Plating: silver or gold
insert arrangementnumbersizecurrent ratingplatingterminationFixed/Removeable
1-4416#15Asilver or gold
Crimp
Solder
PCB

removeable
removeable
fixed

5-252120#5Asilver or gold
Crimp
Solder
PCB

removeable
removeable
fixed

26-29412#35Asilver or gold
Crimp
Solder
PCB

removeable
removeable
fixed

Contact information 1D29P/S-21

insert arrangementnumbersizecurrent ratingplatingterminationFixed/Removeable
5-252120#5Asilver or gold
Crimp
Solder
PCB

removeable
removeable
fixed

1-4
26-29		812#35Asilver or gold
Crimp
Solder
PCB

removeable
removeable
fixed
